PRODUCTS
Mechanical Transmission
|

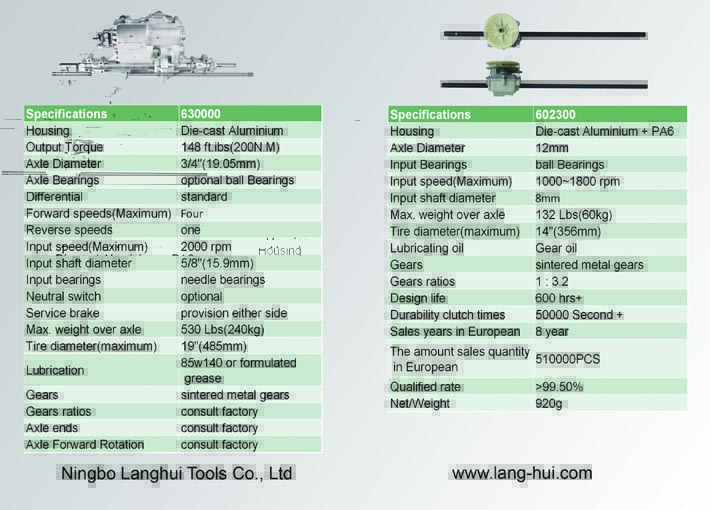

Specifications |
630030 | 630000 |
|
Housing |
Die-cast Aluminum |
Die-cast Aluminum |
|
Output Torque |
148 ft.ibs(200N.M) |
148 ft.ibs(200N.M) |
|
Axle Diameter |
3/4"(19.05mm) |
3/4"(19.05mm) |
|
Axle Bearings |
ball Bearings |
ball Bearings |
|
Differential |
standard |
standard |
|
Forward speeds (Maximum) |
Five |
Four |
|
Reverse speeds |
one |
one |
|
Input speed (Maximum) |
2000 rpm |
2000 rpm |
|
Input shaft diameter |
5/8"(15.9mm) |
5/8"(15.9mm) |
|
Input bearings |
needle bearings |
needle bearings |
|
Neutral switch |
Yes |
optional |
|
Service brake |
provision either side |
provision either side |
|
Max. weight over axle |
771 Lbs(350kg) |
530Lbs(241kg) |
|
Tire diameter(maximum) |
18.7"(474mm) |
19"(485mm) |
|
Gears |
Powder metallurgy gear |
sintered metal gears |
|
Gears ratios |
consult factory |
consult factory |
|
Axle ends |
consult factory |
consult factory |
|
Axle Forward Rotation |
consult factory |
consult factory |
|
N.W |
12kg |
12kg |
Summary:

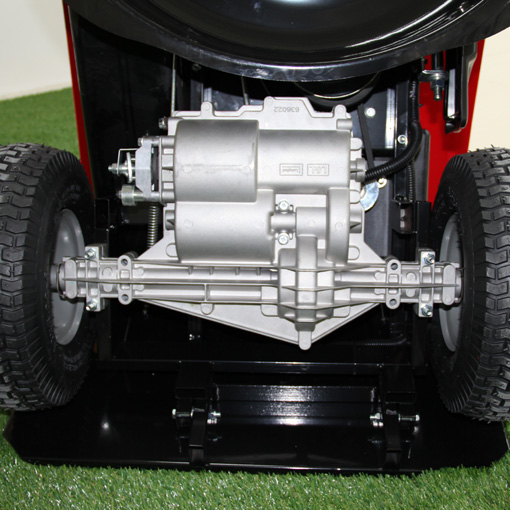

Transmission is a very critical part of a lawn mower. It is the key part of a lawn mower long running durability, and is an important factor in the evaluation of the quality of a lawn mower. Through years of research and development and continuous improvement, Langhui lawn mower transmission has achieved 99.99% market acceptance rate, which has been widely praised by customers. Due to high quality and good price, many big brand mower manufacturers cooperate with us in transmission products. At present, Langhui has two types of hand-guided mower transmission and mower tractor transmission, and totally 3 models of transmission for choice.
Here is a brief introduction to the transmission:
Advantage:
1. Long endurance
2. The qualified rate of market use is 99.99%
3. Independent R&D and production with competitive price.
4. We have various test platforms, such as leak tester, bench tester, etc. to ensure the quality of the transmission.
